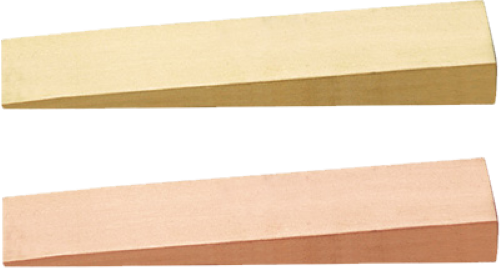

Wedge Flange 150 25 8 Wedge Aluminium Bronze
Wedge Flange 150 25 8 Wedge Aluminium Bronze
| Brand: T&E Tools |
| MPN: CB235-1010 |
- Q/ZBF-235 Die forged.
- Used to lever up equipments.
Individual Sizes (Available Separately):
| Item No. | L (mm) | B (mm) | H (mm) | Be-Cu (g) | Al-Cu (g) |
|---|---|---|---|---|---|
| CB235-1002 | 80 | 13 | 6 | 25 | 23 |
| CB235-1004 | 100 | 50 | 10 | 201 | 185 |
| CB235-1006 | 135 | 50 | 18 | 497 | 455 |
| CB235-1008 | 150 | 40 | 8 | 200 | 180 |
| CB235-1010 | 150 | 25 | 8 | 122 | 112 |
| CB235-1012 | 150 | 25 | 13 | 205 | 185 |
| CB235-1014 | 150 | 50 | 13 | 400 | 365 |
| CB235-1016 | 180 | 32 | 13 | 305 | 280 |
| CB235-1018 | 180 | 50 | 19 | 700 | 640 |
| CB235-1020 | 200 | 20 | 30 | 490 | 451 |
| CB235-1022 | 200 | 30 | 30 | 740 | 675 |
| CB235-1024 | 200 | 40 | 40 | 1315 | 1200 |
| CB235-1026 | 200 | 50 | 12 | 500 | 450 |
| CB235-1028 | 230 | 40 | 20 | 751 | 690 |
| CB235-1030 | 250 | 40 | 30 | 1230 | 1125 |
| CB235-1032 | 300 | 50 | 40 | 2460 | 2250 |
