- Torque Accuracy: CW +/- 3%.
- Data Memory Size: 50 Readings.
- Angle Accuracy: +/- 2° (Rotating 90° at speed of 30°/second).
- Operating Range: 340Nm, 207.5Ft/Lb, 3009In/Lb, 3469Kg/Cm, 999°.
- Measured Angle/Torque Range: 17 to 340Nm, 125 to 250.7Ft/Lb, 150 to 3009In/Lb, 173 to 3469Kg/Cm, 1° to 360°.
- Resolution: 0.1Nm, 0.1Ft/Lb, 1In/Lb, 1Kg/Cm, 1° of Angle.
- Pre-setting Number: 9 Sets.
- Operation Mode: Peak hold/Track.
- Unit Selection: Nm, In/Lb, Ft/Lb, Kg/Cm, Degree of Angle.
- Bright LED's: 12 LED (2 Red + 10 Green).
- Battery: 2 x AAA.
- Size: 85mm x 85mm x 60mm.
Use with any 1/2"Drive ratchet, bar or torque wrench. Multiple functions: Angle setting, Torque setting, Unit setting, Mode setting, Data storage, Data clear, Data output & Online calibration.

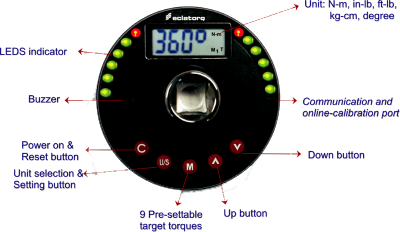

Functions clockwise and anticlockwise. Five button settings, twelve bright LED's (2 red and 10 green) and a large LCD visual screen.
