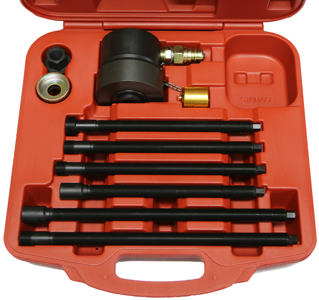

17 Ton Hydraulic Injection Nozzle Puller
17 Ton Hydraulic Injection Nozzle Puller
| Brand: T&E Tools, T&E Tools |
| MPN: 4055 |
- 1 x 14mm x 1.5 pitch Pulling Spindle 240mm long.
- 1 x 14mm x 1.5 pitch Pulling Spindle 315mm long.
- 1 x 17mm x 1.0 pitch Pulling Spindle 240mm long.
- 1 x 17mm x 1.0 pitch Pulling Spindle 315mm long.
- 1 x 18mm x 1.5 pitch Pulling Spindle 315mm long.
- 1 x 25mm x 1.0 pitch Pulling Spindle 240mm long.
- 1 x Distance Ring
- 1 x Tooth Cap Nut 16mm
- 1 x Bush
- Hydraulic Ram: 170KN (17 Ton), 15mm stroke, 16.5mm bore in tubular piston.
- Height retracted: 89mm.
- Extended: 104mm.
This set enables the professional safe extraction of very tight fitting injection nozzles in conjunction with a special pull spindle. An injection nozzle puller with an extraction bridge and a hydraulic pump with a manometer.
The hydraulic cylinder with shoulder nut together with a special pull spindle is placed onto the extraction bridge instead of a mechanical drive. The special manometer of the hydraulic pump ensures that the applied force can checked during the extraction process.
